Rose's Roller
(To others who read this, it was originally written for a friend, and she is
addressed in the text.  I've included it for any who find an interest).

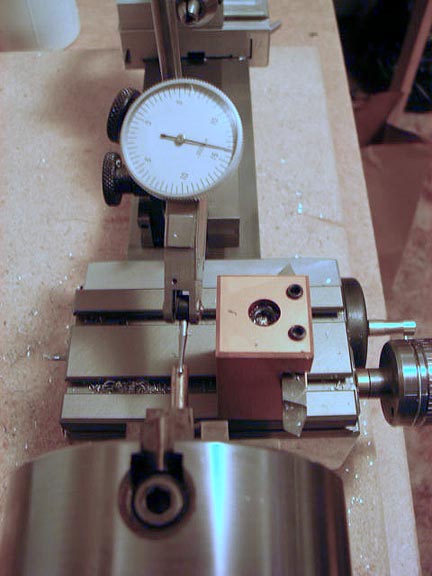

The first thing I did, Rose, was put a piece of stock in the chuck
and rotate it round and round, adjusting the jaws of the chuck
while watching the indicator dial.  When it ran true, I was ready
to start.

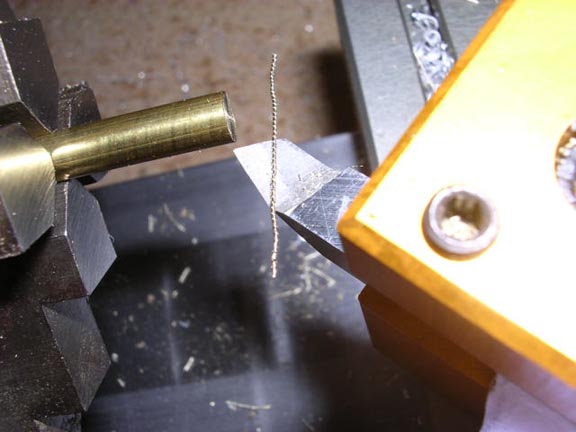

Then mount a cutter in the tool post and face off the end of the work piece so
it's square with the rest of the lathe.

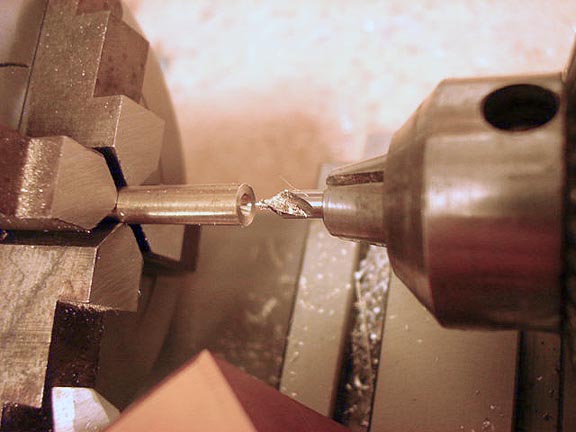

With the end faced off, a small bit called a center drill can put a hole right in the
center of the end of the work piece.  The center drill cuts a tapered hole that
matches the taper on the dead center on the end (the tailstock) of the lathe.





The dead center is the part on the right that is holding the end of the work piece.
It has a small point at the end that fits into the hole just drilled by the center drill in the previous pic.
It has to be used for pieces that are long to keep them from wobbling all over the
place.  Without the dead center in the end of the shaft, the work would climb up
over the top of the cutting bit.

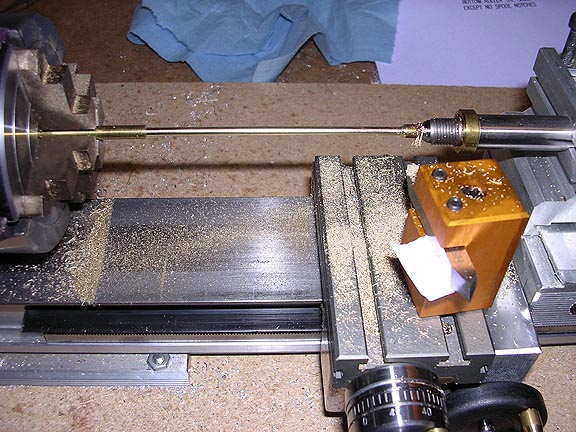

In this shot I've taken a number of passes from right to left, reducing the diameter of the
work piece to get it down to the size needed.  Soon I'll buy, or maybe make, a follow
rest that will support the long piece as the carriage travels while making a cut.  As it
is, only very light cuts can be made, or the rod will bend away from the cutter.  It will even
then, and if this piece has to be perfectly true from end to end, it couldn't be done with-
out a follow rest.

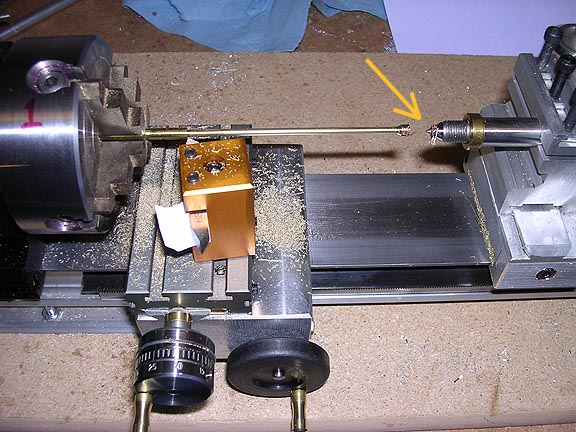

Now I want to cut off the piece that will be used to make the roller.  The dead center
on the right has been backed out of the hole in the end of the shaft.  If it is left in
the hole while the piece is being cut off, there will be bad consequences.  The dead
center is pushing toward the lathe chuck to hold things in place.   Cutting it off with the
dead center in place will cause the cutter to bind and rip the piece out of the lathe, flinging
it across the room, or into your tender body.  I've seen pieces of metal come flying out of
a lathe because of a mistake like this.   Once one went right through a sheet rock wall.
(That was on a much larger lathe, but still...)

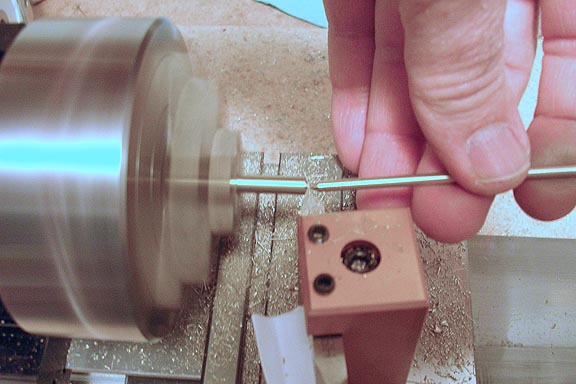

Since this is a small (and smooth) piece, I just hold it with my fingers as I run the cutting
tool into the work piece stub near the spinning chuck.  It just slices it right off and lies down
 into my hand.  For a big piece, on a big lathe, you would use rollers under the work piece
as you cut it off.  This is actually called "parting off", and normally you would use a parting
tool, which looks like a thick knife blade.  It is driven into the spinning work piece, and it
peels off a ribbon of hot metal as it cuts towards the center of the rotating piece.

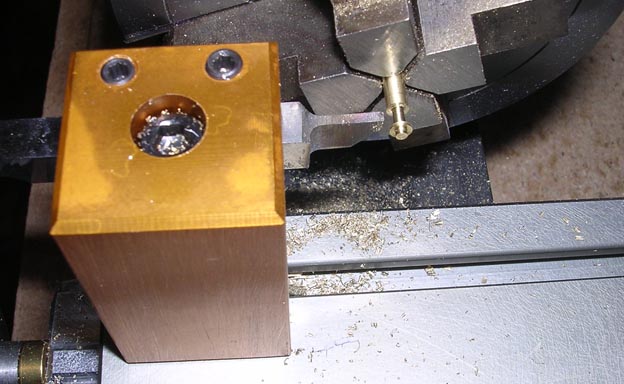

Once the piece is the right length, machining operations near the end of the piece can be turned
without using the dead center, because it is close enough to the chuck that it is fully supported
by the chuck jaws.  The tool I'm using here is actually a parting off tool that I mentioned in the
paragraph above.   This is a small lathe, so the tool is sized for it.  Just happens to fit the
job at hand.

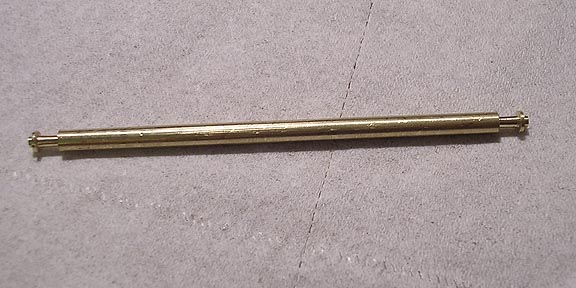

This is what I came up with.    I've ordered some parts that will give me a readout
of the cut length in thousandths of an inch, but it's not here yet.  The Taig doesn't
have any kind of read out for the carriage travel.  This part was actually .004" short.

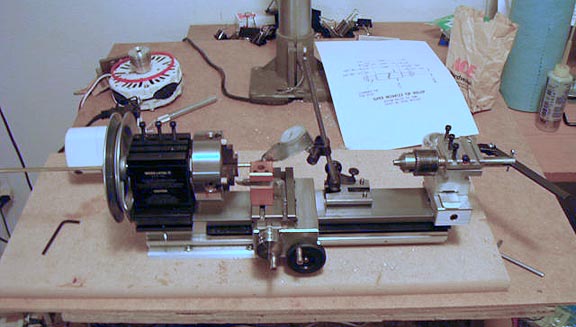

Here's a shot of the complete lathe.  Made in America.  Very basic, the way I
bought it, but as I make tooling for it, it will be able to do all the normal lathe functions.
I just used a sewing machine motor to power it for now.  A bigger motor is in it's future.
This one does fine for soft stuff like brass and aluminum, but won't sustain a cut in steel
for long, without bogging down.









So, I got a Taig..
The start of my little machining section.
